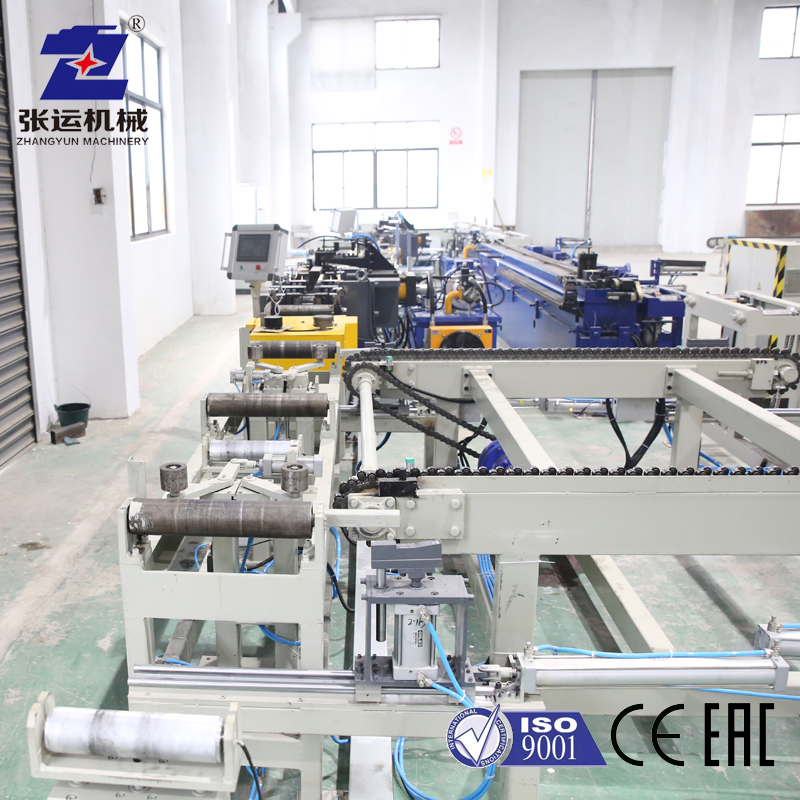

Elevator Guide Rail Making Line With Painting Machine

This line is designed to produce various types of hollow elevator guide rails. The elevator guide rail production line has the characteristics of high accuracy and straightness, and our machines can produce different elevator guide rails according to customers' drawings.
  • Customized

  • Zhangyun

 Elevator Guide Rail Making Line With Painting Machine


The guide rails produced by this production line are used in a range of elevator systems including commercial, residential, and industrial applications. They are essential components that provide stability, safety, and efficiency for elevator systems and ensure smooth operation for elevators. With advances in technology, the manufacturing process for guide rails has become more efficient, and the finished product has become more precise, enhancing elevator performance and reliability.

Production Capacity

230400pcs/year (300days/year; 2shifts/day, 8hours/shift) based on T89B/5m

No. Description Model Qty
1 Automatic Twisting Machine ZY-ZDJNJ-II 1 set
2 Automatic Straightening Machine ZY-ZDJZJ-I 2 sets
3 Rust Removing Machine ZY-CXJ-II 1 set
4 Painting Machine ZY-YQJ-II 1 set
5 Drying Room ZY-HF-II 1 set
6 Planer ZY-B2016 3 sets
7 Chip Remover ZY-PXJ1000 1 set
8 Automatic Detection Machine ZY-ZDJCJ-I 1 set
9 Automatic Straightening Machine ZY-ZDJZJ-I 2 sets
10 Milling Machines ZY-JGSCX-II 2 sets
Female Milling Machine ZY-JGSCX-II 1 set
Male Milling Machine ZY-JGSCX-II 1 set
Drilling Machine ZY-JGSCX-II 2 sets
Double-head Countersink Drilling Machine ZY-JGSCX-II 1 set
One Conveyor Line ZY-JGSCX-II 1 set
11 Oiling And Filming Machine ZY-TYTMJ-II 1 set
12 Transverse Conveyor   (A) ZY-HYJ-II 9 sets
13 Jack traverse Converyor (B) ZY-DSJ-II 17 sets
14 Longitudinal Conveyor  (C) ZY-ZXJ-II 8 sets
15 Independent Roller ZY-DLJ-I 1 set
16 Control System
1 set




Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.


Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.



1.Q: Are you manufacturer or trading company?
A: We are manufacturer. And we have our own import & export rights.
2.Q: What info you need before you make proposal?
A:Your target type of elevator guide rails; your required production capacity per year; working hours per day, working days per year.
3.Q: What is the MOQ?
A: One set.
4.Q: Do you provide installing and debugging overseas?
A: We send engineers overseas for installation and debugging under client’s request. On line guiding and technical support is for life time.
5.Q: Can you make the machines according to my design or prototype?
A: Yes. We have an experienced engineering team for working out the most suitable design and production plan for the machines you are going to book with us.We can also make the machines according to your design or prototype.
6.Q: How does your factory do regarding quality control?
A: We have Quality Management System Certificate GB/T9001-2016/ISO9001:2015. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
7.Q: How can I trust you that machines have passed test running before shipping?
A: 1) We record the test running video for your reference.
    2) You are welcomed to observe the test running in our factory.
8.Q: What about your after-sale service?
A: 1) We have an after-sale service team for each customer, including GM, sales Rep, chief engineer, and main engineers for design and making your machines.

2)Overseas after-sale service is available.

3)We provide life time online technical support.

9. Q: What should I do if I just start a new business?
A: Contact us immediately,we provide free consultant pre-sales service.

We are domestic leading factory in elevator guide rail processing equipment field. We are familiar with our machines and we have many successful user cases. We know the development history and the latest trends. We can make the most reasonable proposal for you.

10. Q:Can I visit you factory to check machines on-site?

A: We are manufacturer, we have our own R&D department and workshops for more than 20 years. We warmly welcome your visit and checking machines in our factory.
