High Speed T Shaped Elevator Guide Rail Metal Roller Making Processing Line
Elevator guide rails play a critical role in the functioning of a lift. They are an integral component of lift systems, providing support and guidance to the elevator car and ensuring the safety and smooth operation of the lift.
Guide rails are designed to provide a rigid and stable support structure for the elevator car, allowing it to move up and down the shaft safely and smoothly. They are typically made from high-quality steel and are often coated with a layer of polyurethane to help reduce friction and noise.
In conclusion, elevator guide rails play an essential role in the safe and efficient functioning of elevator systems. The manufacturing process for guide rails is complex and requires precision engineering and careful quality control. Advanced computerized manufacturing techniques are transforming the way guide rails are produced, enabling manufacturers to create highly customized and optimized rails that meet the specific needs of individual lift systems. As the demand for elevator lifts continues to grow worldwide, the importance of high-quality, safe, and reliable guide rails will only increase.
Production Capacity
230400pcs/year (300days/year; 2shifts/day, 8hours/shift) based on T89B/5m
| No. | Description | Model | Qty |
| 1 | Automatic Twisting Machine | ZY-ZDJNJ-II | 1 | set |
| 2 | Automatic Straightening Machine | ZY-ZDJZJ-I | 2 | sets |
| 3 | Rust Removing Machine | ZY-CXJ-II | 1 | set |
| 4 | Painting Machine | ZY-YQJ-II | 1 | set |
| 5 | Drying Room | ZY-HF-II | 1 | set |
| 6 | Planer | ZY-B2016 | 3 | sets |
| 7 | Chip Remover | ZY-PXJ1000 | 1 | set |
| 8 | Automatic Detection Machine | ZY-ZDJCJ-I | 1 | set |
| 9 | Automatic Straightening Machine | ZY-ZDJZJ-I | 2 | sets |
| 10 | Milling Machines | ZY-JGSCX-II | 2 | sets |
| Female Milling Machine | ZY-JGSCX-II | 1 | set |
| Male Milling Machine | ZY-JGSCX-II | 1 | set |
| Drilling Machine | ZY-JGSCX-II | 2 | sets |
| Double-head Countersink Drilling Machine | ZY-JGSCX-II | 1 | set |
| One Conveyor Line | ZY-JGSCX-II | 1 | set |
| 11 | Oiling And Filming Machine | ZY-TYTMJ-II | 1 | set |
| 12 | Transverse Conveyor (A) | ZY-HYJ-II | 9 | sets |
| 13 | Jack traverse Converyor (B) | ZY-DSJ-II | 17 | sets |
| 14 | Longitudinal Conveyor (C) | ZY-ZXJ-II | 8 | sets |
| 15 | Independent Roller | ZY-DLJ-I | 1 | set |
| 16 | Control System |
| 1 | set |

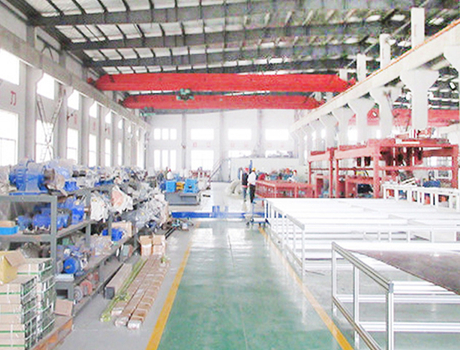

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.
Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
